Hand-push Cement Ground Grinder 220V 7.5KW Concrete Epoxy Floor

Hand-push Cement Ground Grinder 220V 7.5KW Concrete Epoxy Floor Polisher



1. The pure copper motor is of high quality and the product is sturdy and durable. The new stator and rotor of the motor can easily realize the conversion of electrical energy and mechanical energy.

2.The diamond chassis is sharp, hard, resistant to wear and high in work efficiency and quality.

3.High performance, stable life, long service life.

4.Highly adaptable cement floors can also be fully hardened and work can be done at the root of the wall.

5.With dust suction fan, dust-free operation.

6.The grinding head can be replaced for grinding, polishing, rust removal and paint removal.

  　 　

Grinding Width: 500mm

Motor Speed: 1430r/min

Voltage: 220V

Power: 7.5kw

Phase Number:1

Fan Power: 0.75kw

Maximum Airflow: 180mm³/h

Dust Loading Capacity: 40L

　



9 head grinding chassis, grinding area is
large, high efficiency. Water pipes can be connected to reduce
dust, and keep the machine dry when not
in use.(Please turn off the fan before connecting the
water pipe). 40L large-capacity dust collection box,

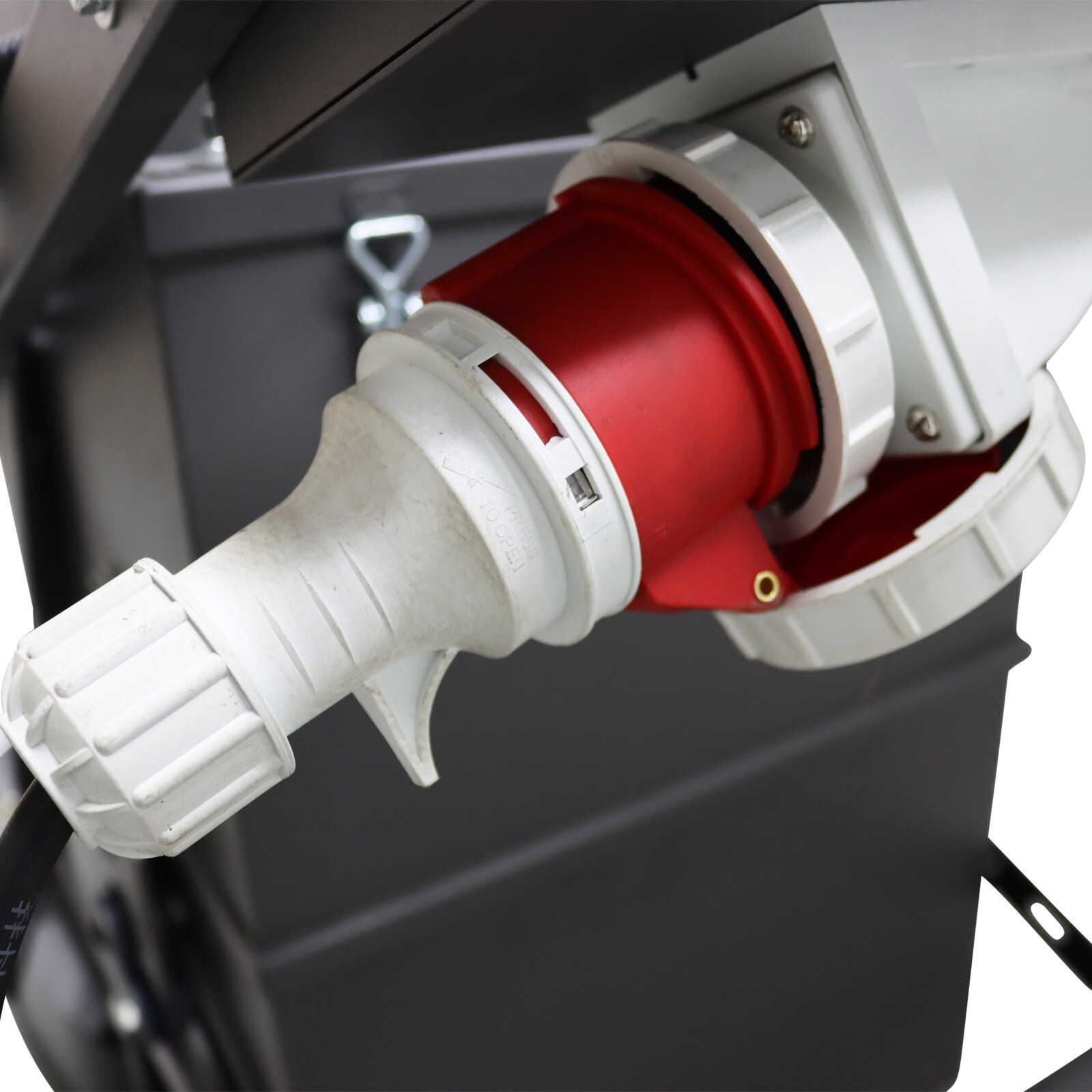

without frequent cleaning. Aviation plug, safe to use, fast and
efficient connection. Double suction fan, complimentary two
filter elements, good suction effect. Special dust removal device, gently pull,
dust will fall.   Give away 5 meters of wires. The maximum length of the wire connected to the machine can be 90 meters. The specification is three-core wires. Each wire should not be less than 6 mm ² of pure copper wire. The wire must be connected to the air switch, and the rated current of the air switch is about 63A. As shown in the picture of wiring mode, please contact us if you have any questions.

Precautions for use

1. The input voltage should not be too low.

2. When using, first lift the machine head off the ground,and then turn on the
switch. When the machine head rotates normally, gently place it on the ground.

3. When working, the machine head swings left and right,then moves forward, and
cannot stop in place.

4. In case of power failure during operation, the switch should be reset and cannot
be stopped at the original position to avoid burning the motor when the power is
on.
    Item Number: Hand-push Cement Ground Grinder 220V 238004

You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us
with low cost.
